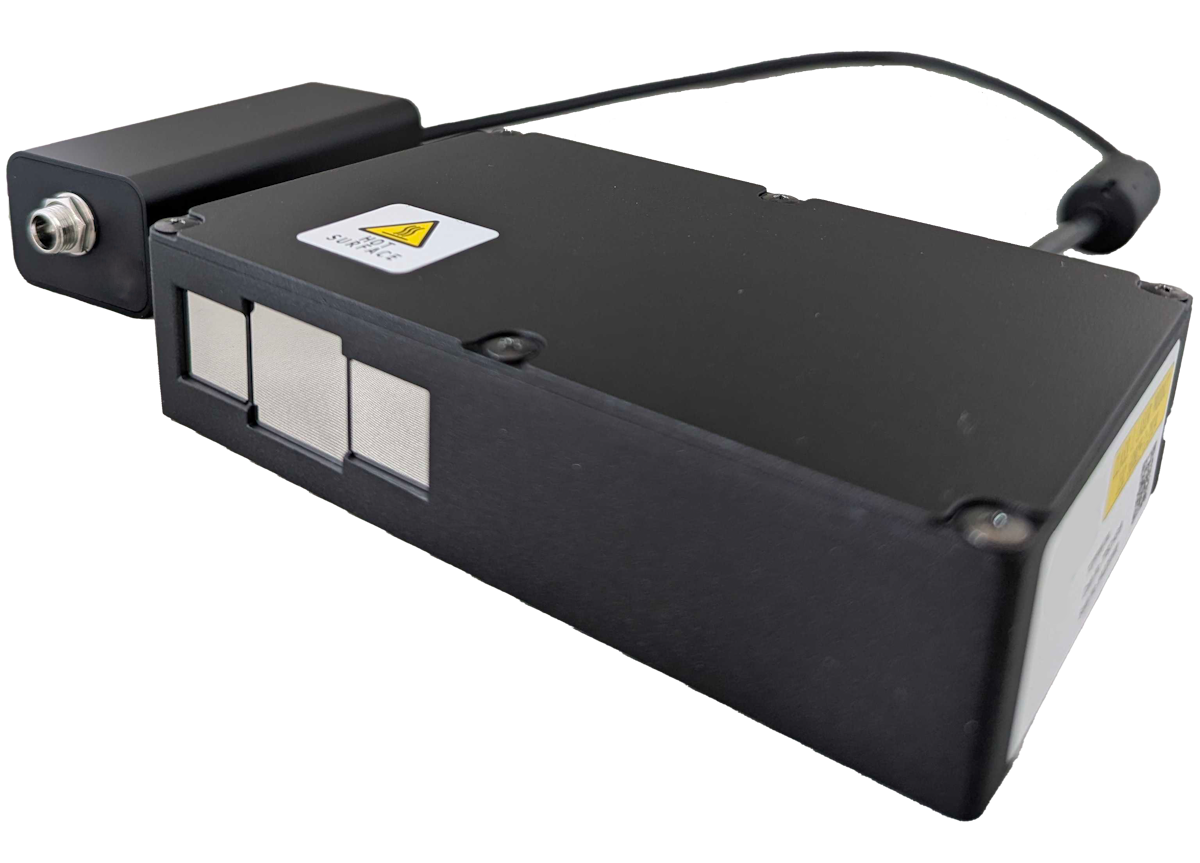

3D ToF CAMERA
TOPPAN’s 3D ToF camera is equipped with our proprietary hybrid ToFTM sensor and a distance calculation unit (Depth Engine) optimized for our unique sensing technology. Engineered for both outdoor and demanding environments, it includes a comprehensive SDK to facilitate seamless integration. The camera is the optimal choice for autonomous robots, automated forklifts, and service robots that require highly reliable obstacle detection and object recognition.
- ACTIVE PIXELS
- 640(H) x 480(V)
- WORKING RANGE
- 0.5m - 7m
- MODE
-
Standard mode (15fps, 30fps, 60fps)
High-Speed mode (120fps)
HDR mode (15fps, 30fps, 60fps)
- ToF SENSOR
- TPHT4030
*Our original ToF
sensor with hybrid ToF technology
- FoV
- 90°(H) x 67°(V)
- LIGHT SOURCE
- 2 x VCSEL
(λ=940nm)
- I/F
- USB3.1 Gen1
(Port: Type-C)
3D ToF SENSOR
TOPPAN’s 3D ToF sensor employs a unique pixel structure optimized for our short pulse ToF sensing. Fabricated in a back-illuminated CMOS process, it achieves enhanced high sensitivity in the near-infrared region. The sensor enable high-performance integration into diverse applications.

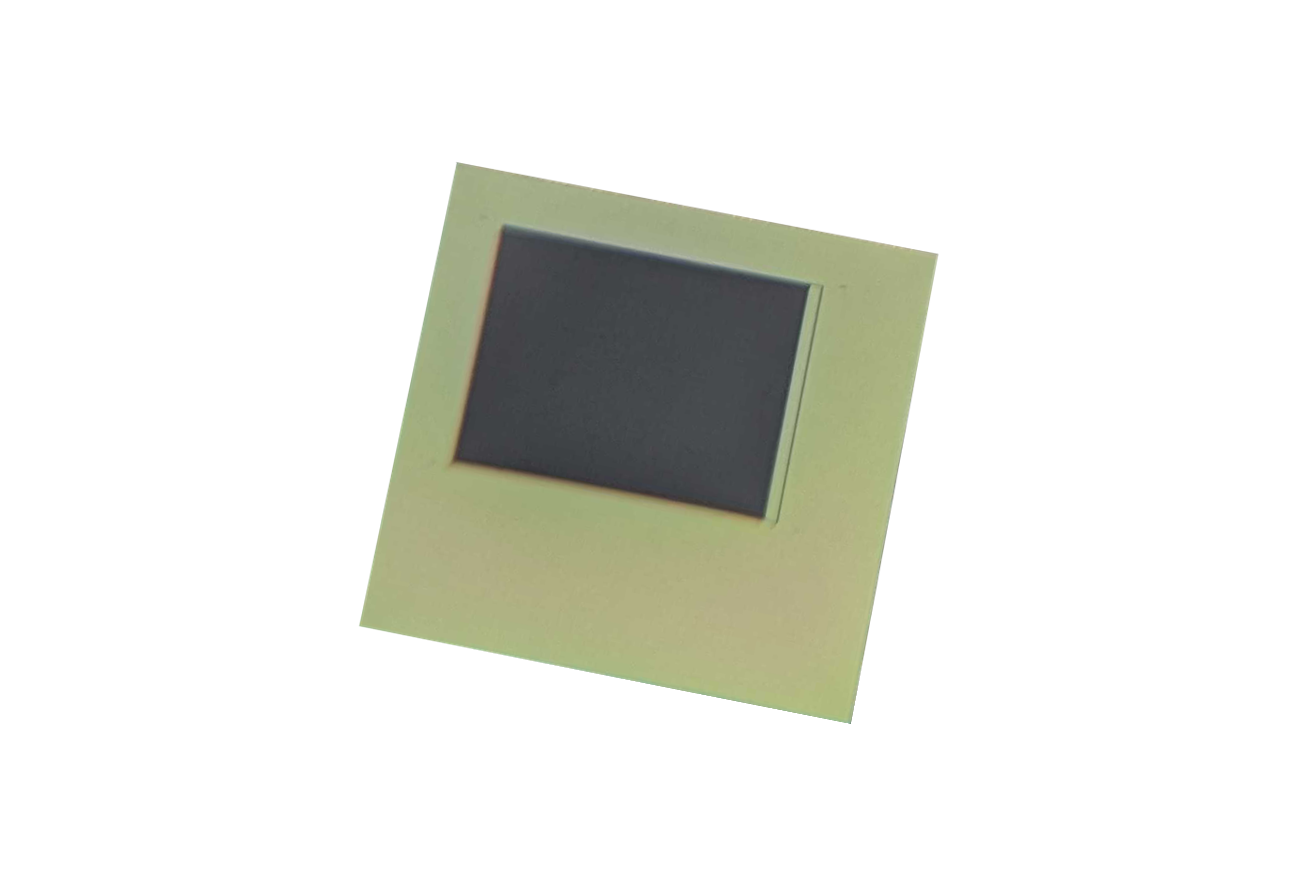

TPHT4040
The TPHT4040 is a high-performance 3D ToF sensor featuring proprietary hybrid ToFTM technology and a back-illuminated CMOS process for enhanced NIR sensitivity. It delivers accurate, motion-artifact-free depth data even in 100,000 lx sunlight. Supporting high-speed imaging (up to 120 fps), HDR, and 4x4 binning for improved SNR, the sensor ensures reliable performance across diverse lighting conditions and ranges via a MIPI CSI-2 interface.
- ACTIVE PIXELS
- 640(H) × 480(V); VGA
160(H) × 120(V); 4x4 Binning
- OPTICAL FORMAT
- 1/4 Type
- SHUTTER TYPE
- Global shutter
- FRAME RATE
- 30fps(Typ.)
Max.120fps(3-tap, 4 lane); VGA
- PIXEL SIZE
- 5.6µm × 5.6µm
- PIXEL STRUCTURE
- 4-tap ToF Pixel
- OUTPUT DATA I/F
- MIPI D-PHY CSI-2
2/4 data and 1 clock lanes
